HPLC COLUMN OVEN WITH BUILT-IN

AUTOMATED HPLC COLUMN SELECTOR SYSTEM:

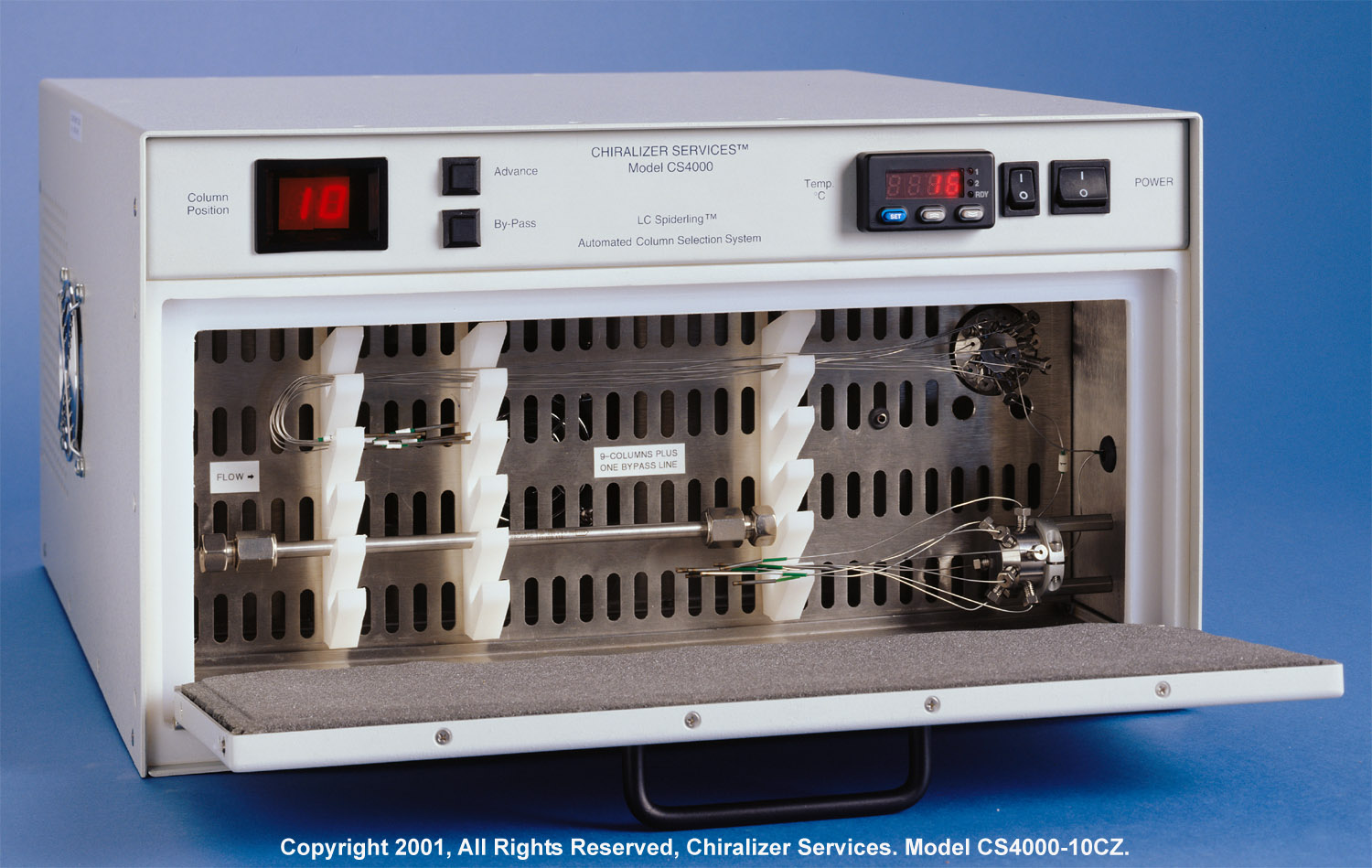

The LC SPIDERLING™ DELUXE, Model CS4000-06CZ and CS4000-10CZ systems: Feature a built-in column oven (forced air system) that can heat or cool all of the columns from 10 degrees below ambient to 60 degrees C. Each module stacks in your Agilent / HP Model #1050, 1100 or 1200-Series Instrument stack. Models are available for selecting five or nine HPLC columns plus one By-Pass line. Optional ultra high pressure 600 Bar rated versions are also available.

The column compartment is composed entirely of high grade stainless steel and is of a generous size so as to accommodate columns of up to 30 cm in length. The oven has been designed to provide an uniform temperature throughout the chamber. Your mobile phase will be preheated as it is drawn through the preheated valve, tubing and manifold. Detailed model specifications can be found in our color catalog.

For more information, please contact us at : CHIRALIZER SERVICES, L.L.C.  USA

http://www.LC-MS.com           http://www.HPLCTOOLS.com          http://www.CHIRALIZER.com
